Vacuum Glass Handling Lifter

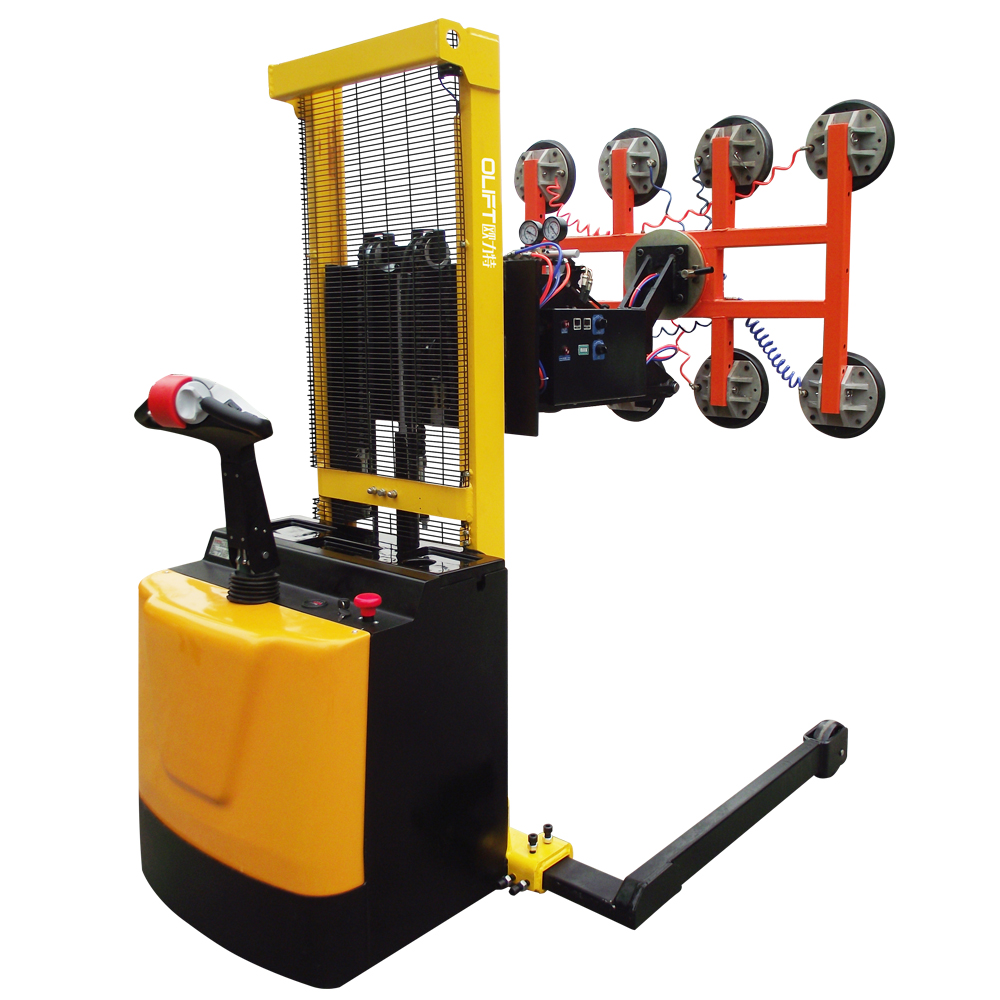

Electric Vacuum Lifter-GL0415；GL0615；GL0815 for handling and fitting glass sheets etc inside or outside buildings.
Special designed for handling different kinds of heavy plate, such as steel, glass, granite, marble, board etc, with vacuum suction cups and using for installing and carrying steel board, glass wall, granite, marble etc. Easily handle lifting, moving and rotating with vacuum suction cups and powerful drive system.
Functions:
The vacuum lifter is designed with automatic pressure control doable routes to avoid system failure.
Ideal for loading & unloading transporting, rotating and installation.
Easy for operation,with the following functions:
- Self-propelled drive,
- Higher lift suction cup, available upon request.
- Electric lift up to 1.5M~2.5M.
- Electric side shift 100mm both right & left.
- Electric tilting forwards&backwards from vertical to horizontal or reverse.
- Manual rotating.
| I. Model-GL0415 series specifications: | ||||
| Model | GL0415(4×30) | GL0415(6×25) | GL0415(6×30) | GL0415(8×25) |
| Max. Load Capacity | 400kgs | 400kgs | 400kgs | 400kgs |
| Safe Load Capacity | 200kgs | 200kgs | 200kgs | 200kgs |
| Lifting Height | 1500mm | 1500mm | 1500mm | 1500mm |
| QTY of Caps (customized) | 4pcs | 6pcs | 6pcs | 8pcs |
| Cap Diameter | Ø300mm | Ø250mm | Ø300mm | Ø250mm |
| Plate Size (customized) | 1220x1830mm | 1220x1830mm | 2440x1830mm | 2440x1830mm |
| Load Center | 650mm | 650mm | 650mm | 650mm |
| Drive Motor | 24V/500W | 24V/500W | 24V/500W | 24V/500W |
| Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W |
| Battery | 2x12V/70Ah | 2x12V/70Ah | 2x12V/70Ah | 2x12V/70Ah |
| Charger | 24V/10A | 24V/10A | 24V/10A | 24V/10A |
| II. Model-GL0615 series specifications: | ||||
| Model | GL0615(4×30) | GL0615(6×25) | GL0615(6×30) | GL0615(8×30) |
| Max. Load Capacity | 600kgs | 600kgs | 600kgs | 600kgs |
| Safe Load Capacity | 300kgs | 300kgs | 300kgs | 300kgs |
| Lifting Height | 1500mm | 1500mm | 1500mm | 1500mm |
| QTY of Caps (customized) | 4pcs | 6pcs | 6pcs | 8pcs |
| Cap Diameter | Ø300mm | Ø250mm | Ø300mm | Ø300mm |
| Plate Size (customized) | 2440x1830mm | 2440x1830mm | 2440x1830mm | 2440x1830mm |
| Load Center | 950mm | 950mm | 950mm | 950mm |
| Drive Motor | 24V/700W | 24V/700W | 24V/700W | 24V/700W |
| Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W |
| Battery | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
| III. Model-GL0815 series specifications: | ||||
| Model | GL0815(6*30) | GL0815(8*30) | GL0815(10*30) | GL0815(8*30) |
| Max. Load Capacity | 800kgs | 800kgs | 800kgs | 800kgs |
| Safe Load Capacity | 400kgs | 400kgs | 400kgs | 400kgs |
| Lifting Height | 1500mm | 1500mm | 1500mm | 2500mm |
| QTY of Caps (customized) | 6pcs | 8pcs | 10pcs | 8pcs |
| Cap Diameter | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Plate Size (customized) | 3660x2440mm | 3660x2440mm | 3660x2440mm | 3660x2440mm |
| Load Center | 1250mm | 1250mm | 1250mm | 1250mm |
| Drive Motor | 24V/900W | 24V/900W | 24V/900W | 24V/900W |
| Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W |
| Battery | 2x12V/160Ah | 2x12V/160Ah | 2x12V/160Ah | 2x12V/160Ah |
| Charger | 24V/20A | 24V/20A | 24V/20A | 24V/20A |
