Hydraulic Scissor Lift Table

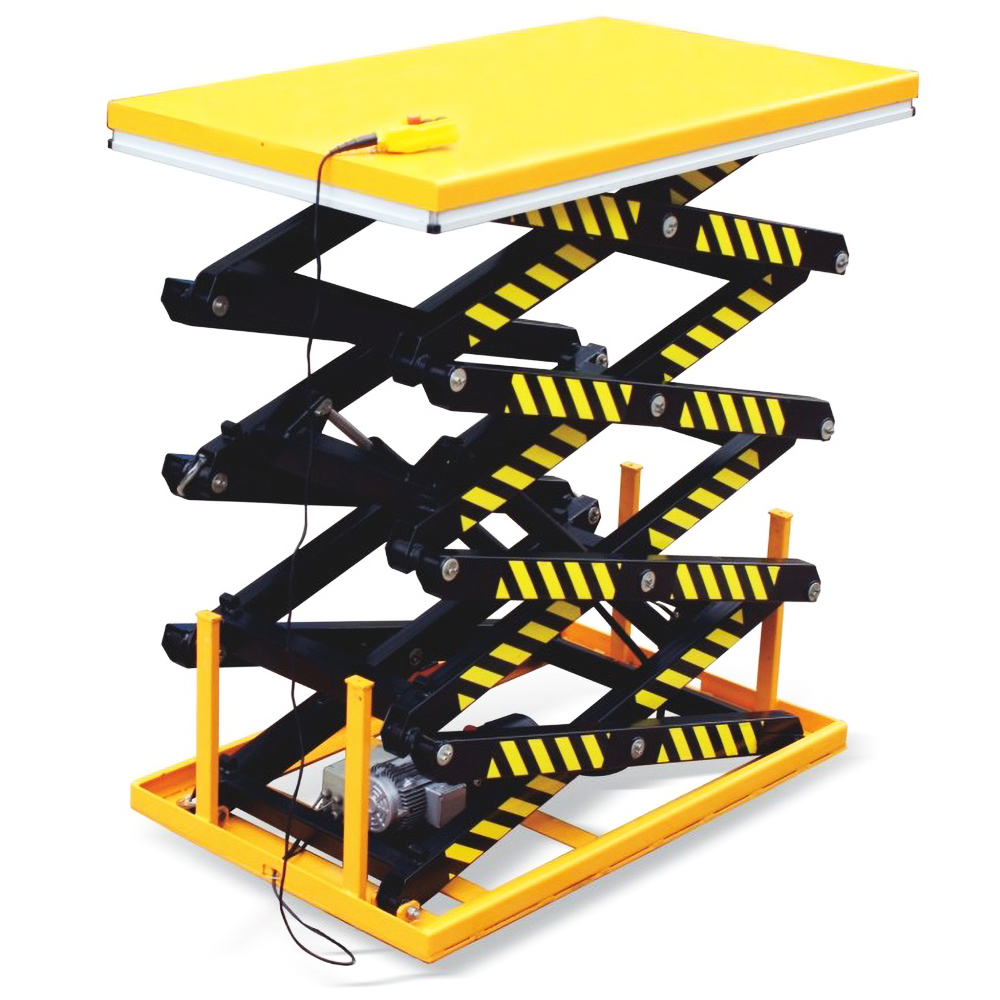

Hydraulic Scissor Lift Table A601-607 series

One year warranty; This kind of stationary scissor lift platform is widely used in manufacturing, maintenance and other industries to meet the European EN1757-2 standard and the US ANSI/ASME standard.

Control method options: Control by handle or Pedal control

Safety spacing between all moving parts of the lift table.

Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

Adjustable trap prevention safety trip bars on all four sides of the platform.

Overload protection.

Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

Model NumberA601A602A603A604A605A606A607
Platform rated capacity kg10002000400010002000400800
Min.platform heightmm305360400470560600710
Max.platform heightmm1780178020503000300041004100
Platform sizemm820×1300820×13001700×12001700×10001700×10001700×10001700×1000
Base sizemm640×1240785 x12201600 x9001600 x10001600 x10101600 x9801600 x980
Lifting Time (second)s35-4535-4555-6535-4550-6030-4070-80
Power Pack380V/50Hz   AC1.5-2.2Kw
Overall net weightkg210295520450750550860
