Fork Reach Truck-TW

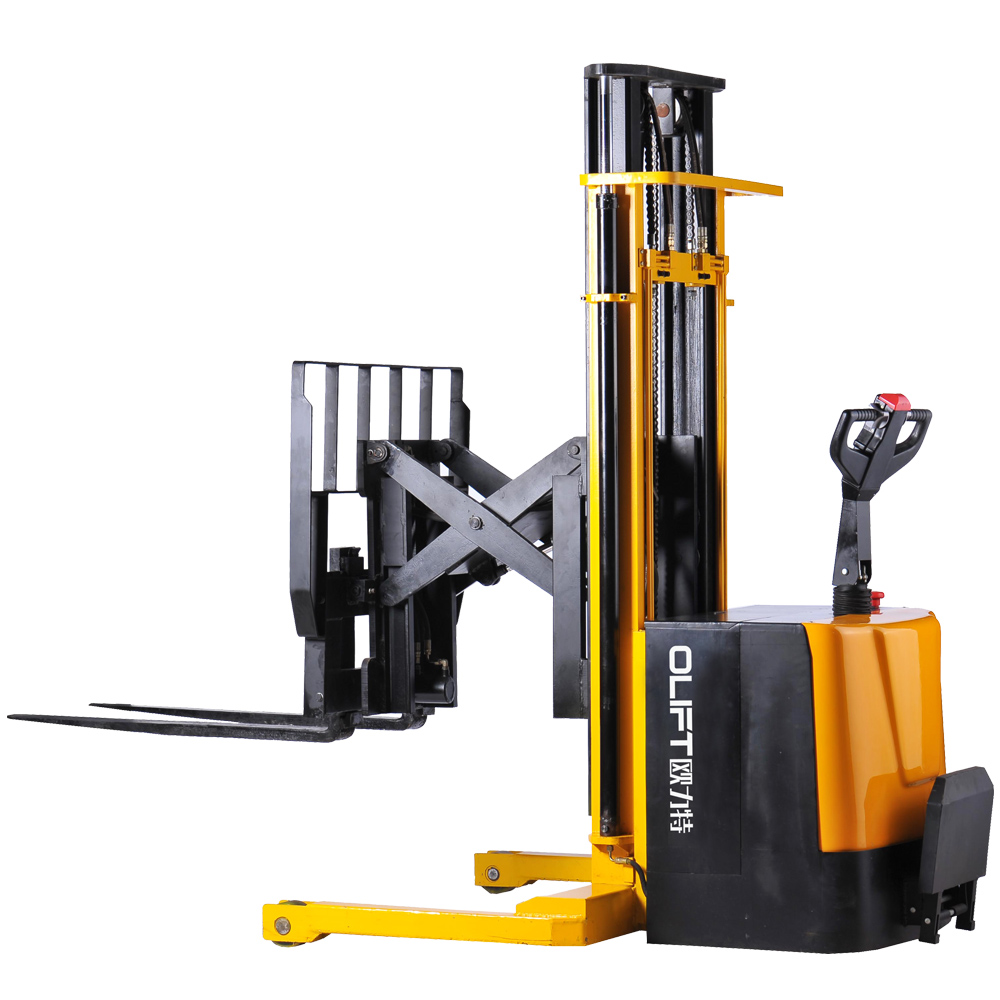

Fork Reach Truck TW Series

  1. Ergonomic designs keep the operator productive.
  2. Use handle to control driving speed, lifting/lowering speed, sideshift, fork reach and tilting.
  3. Cylinder have safety explosion proof valve,to avoid fork dropping suddenly when oil tube is broken ,ensure the safety of operator.
  4. Unmatched cycle times and energy efficiency.
  5. Low voltage protection setting prolongs the battery life. (while battery less 20% only can drive no lifting)
  6. Lifting up to 1250kgs, Maximum fork reach distance:500mm.
  7. Easy handling and maintence.

Model NumberTW10TW12
Driving styleStanding pedalStanding pedal
Load capacitykg10001250
Load centermm450450
Min. overall lengthmm21202120
Max. overall lengthmm26602660
Reach Distancemm500500
Overall widthmm11001100
Min. overall heightmm2080/1870/2080/23502080/1870/2080/2350
Fork dimension L×b×mmm(920-1070) ×100×35(920-1070) ×100×35
Outside width of forksmm240~680240~680
Ground clearancemm5050
Wheel materialPUPU
Driving wheel sizemmØ250×80Ø250×80
Front wheel sizemmØ128×50Ø128×50
Max. height of forksmm1600/2500/3000/35001600/2500/3000/3500
Min. forks heightmm1010
max. overall heightmm2080/3560/3770/42702080/3560/3770/4270
Max. travel speedkm/h5.55.5
Gradeability(laden)%55
Brake styleElectromagneticElectromagnetic
Power of driving motorkw0.9-1.20.9-1.2
Power of lift motorkw1.6-2.01.6-2.0
ChargerV/AAC220/50Hz 24V/40AAC220/50Hz 24V/40A
Battery capacity/voltageAh/V280/24280/24
Weight of batterykg250250
Net weight without batterykg920/940/960/980920/940/960/980
