Hand Pallet Truck_A100

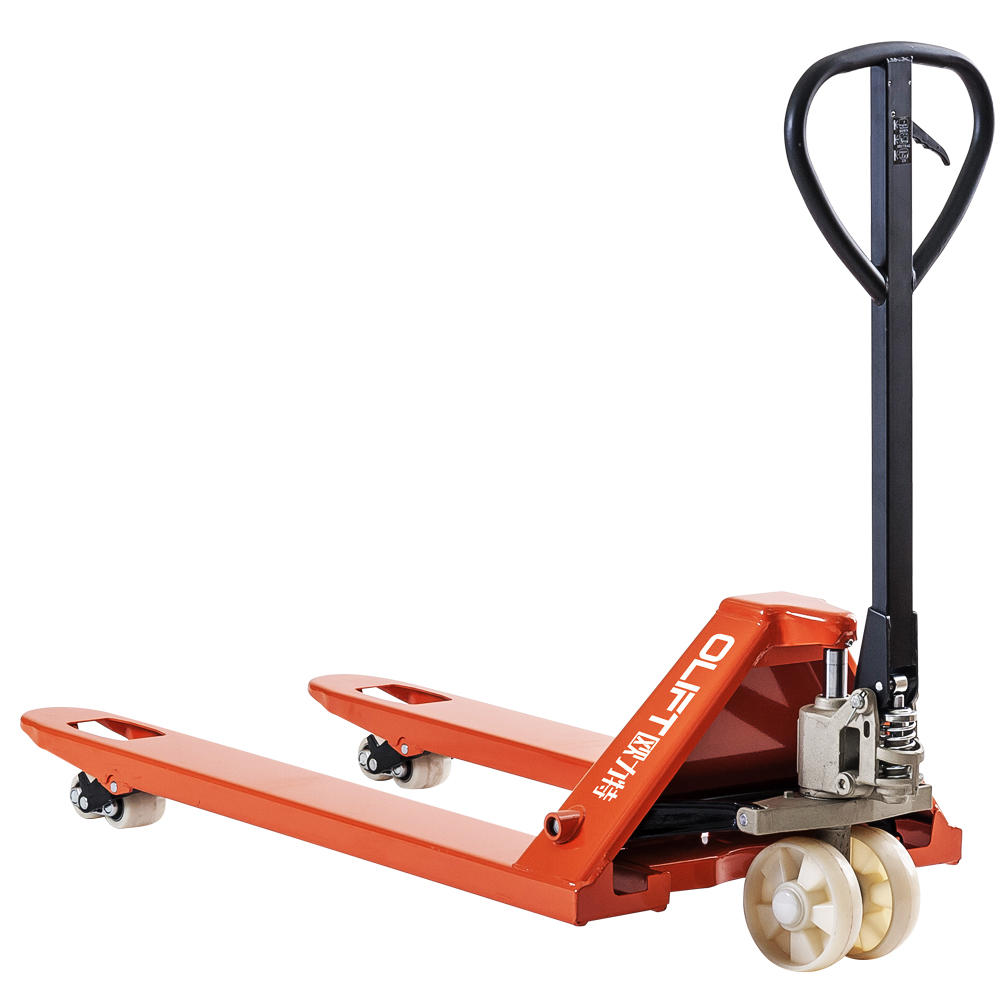

Hand Pallet Truck A100

Lowering position: Pull up the finger tip control handle to lower the truck.

Neutral position: Stay the position during move.

Lifting position: Pull down the tip control, press the pump to raise the truck.

Welding pump with leaking proof design.

With over loading safety valve.

Chrome plate piston.

Different fork length are available.

Option: rubber wheel, nylon wheel, polyurethane wheel.

Optimized round fork tips ensures easy operation;

50mm fork thickness ensures high capacity;

Curve design on the fork tips help pallets entry in/out.

ModelA100
Load capacityQ(kg)2000
Net weightkg55-65
Type size, frontmm160*50
Type size, rearmm70*60
Lifting heighth3(mm)190
Height of tiller in drive position maxh14(mm)1177
Lowered heighth13(mm)75
Fork dimensionss/e/l54/150/1150
Distance between fork- armsb5(mm)520/550/685
Aisle width for pallets 1000×1200 crosswaysast(mm)1730/1800
Aisle width for pallets 800×1200 lengthwaysast(mm)1780/1800
Ground clearance, centre of wheelbasem2(mm)23
