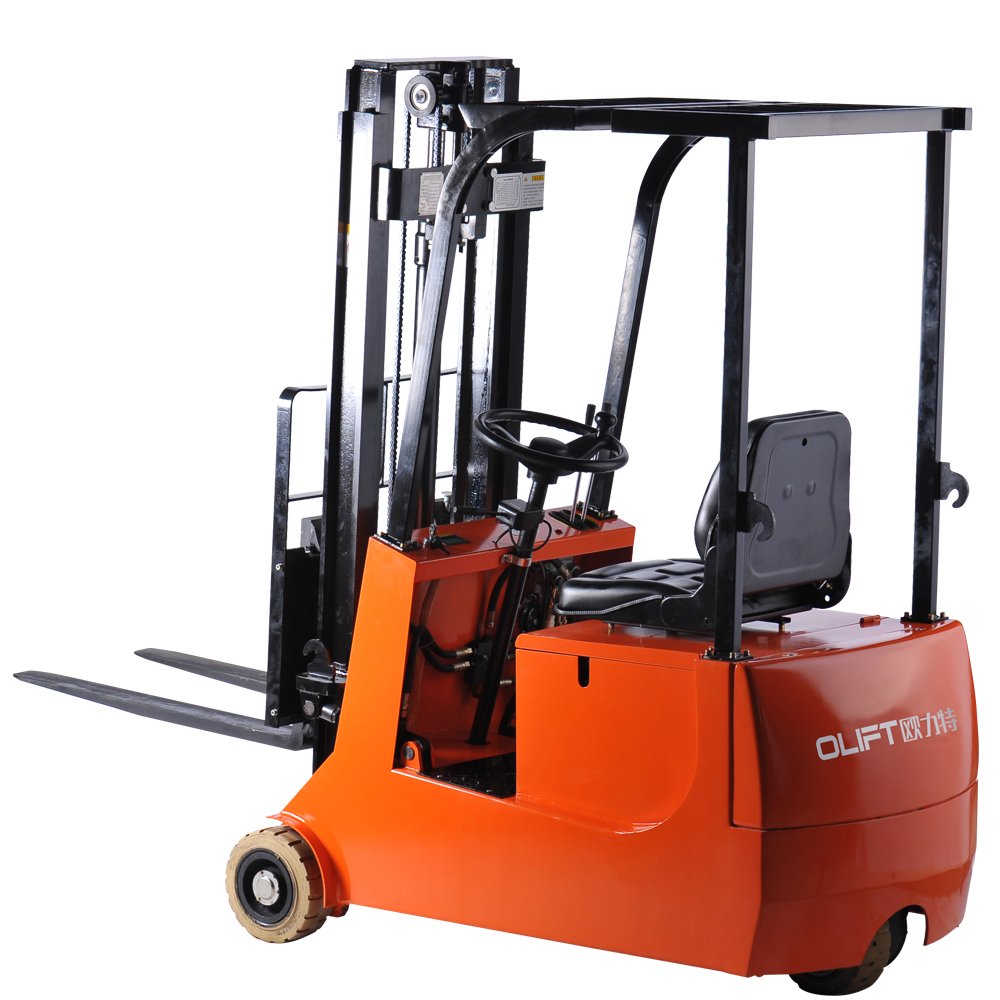

Compact Electric Forklift for Controlled Material Handling
The FN Series is a three-wheel electric counterbalanced forklift range with a compact structure for operations where manoeuvrability is important. It uses a Curtis electrical control system and is available in three configurations: FN1025, FN1031 and FN1035.
Key Configuration Information
- Rated load capacity: 1,000 kg at a 400 mm load centre
- Listed maximum lift heights: 2,500 mm, 3,100 mm or 3,500 mm, depending on model
- Drive and lift motors: 2 kW drive motor and 2.2 kW lift motor
- Battery configuration: 24 V / 300 Ah
Request the Right Configuration
For a suitable quotation, please share the load weight and dimensions, required lift height, aisle width, operating environment, quantity and destination country. Our team will help confirm the appropriate FN configuration for your application.
FN Series FAQ
Which FN model should I choose?
The listed FN1025, FN1031 and FN1035 models have different maximum lift heights. Please provide your required lift height, load dimensions and worksite conditions so we can help confirm a suitable configuration.
What information is needed for a quotation?
Please provide the material to be handled, load weight, dimensions, lifting height, aisle or access limits, quantity and destination country.
| Model Number | FN1025 | FN1031 | FN1035 | |
| Driving style | Steering wheel | Steering wheel | Steering wheel | |
| Load capacity | kg | 1000 | 1000 | 1000 |
| Load center | mm | 400 | 400 | 400 |
| Overall length | mm | 2380 | 2380 | 2380 |
| Overall width | mm | 955 | 955 | 955 |
| Min. overall height | mm | 1850 | 2100 | 2300 |
| Height of protection ceiling | mm | 1935 | 1935 | 1935 |
| Fork dimension L×b×m | mm | 920×100×32 | 920×100×32 | 920×100×32 |
| Outside width of forks | mm | 220～750 | 220～750 | 220～750 |
| Ground clearance | mm | 100 | 100 | 100 |
| Base distance | mm | 1095 | 1095 | 1095 |
| Wheel material | PU | PU | PU | |
| Front wheel size | mm | φ292×102 | φ292×102 | φ292×102 |
| Driving wheel size | mm | φ267×127 | φ267×127 | φ267×127 |
| Min. steering size | mm | 1320 | 1320 | 1320 |
| Min. width of aisle | mm | ≥2750 | ≥2750 | ≥2750 |
| Max. height of forks | mm | 2500 | 3100 | 3500 |
| Max. overall height | mm | 3285 | 3985 | 4285 |
| Free lift height（optional) | mm | 1310 | 1560 | 1810 |
| Fork tilt angle forward α | ( °) | 2 | 2 | 2 |
| Fork tilt angle backward β | ( °) | 5 | 5 | 5 |
| Max. travel speed | Km/h | 8 | 8 | 8 |
| Lift speed（laden/unladen） | mm/s | 75/110 | 75/110 | 75/110 |
| Lower speed（laden/unladen） | mm/s | 110/135 | 110/135 | 110/135 |
| Gradeability | % | 8 | 8 | 8 |
| Brake style | Mechanical | Mechanical | Mechanical | |
| Power of driving motor | Kw | 2 | 2 | 2 |
| Power of lift motor | Kw | 2.2 | 2.2 | 2.2 |
| Battery capacity/voltage | Ah/V | 300/24 | 300/24 | 300/24 |
| Weight of battery | kg | 300 | 300 | 300 |
| Net weight（without battery） | kg | 1370 | 1400 | 1450 |
