Four-Wheel Electric Forklift

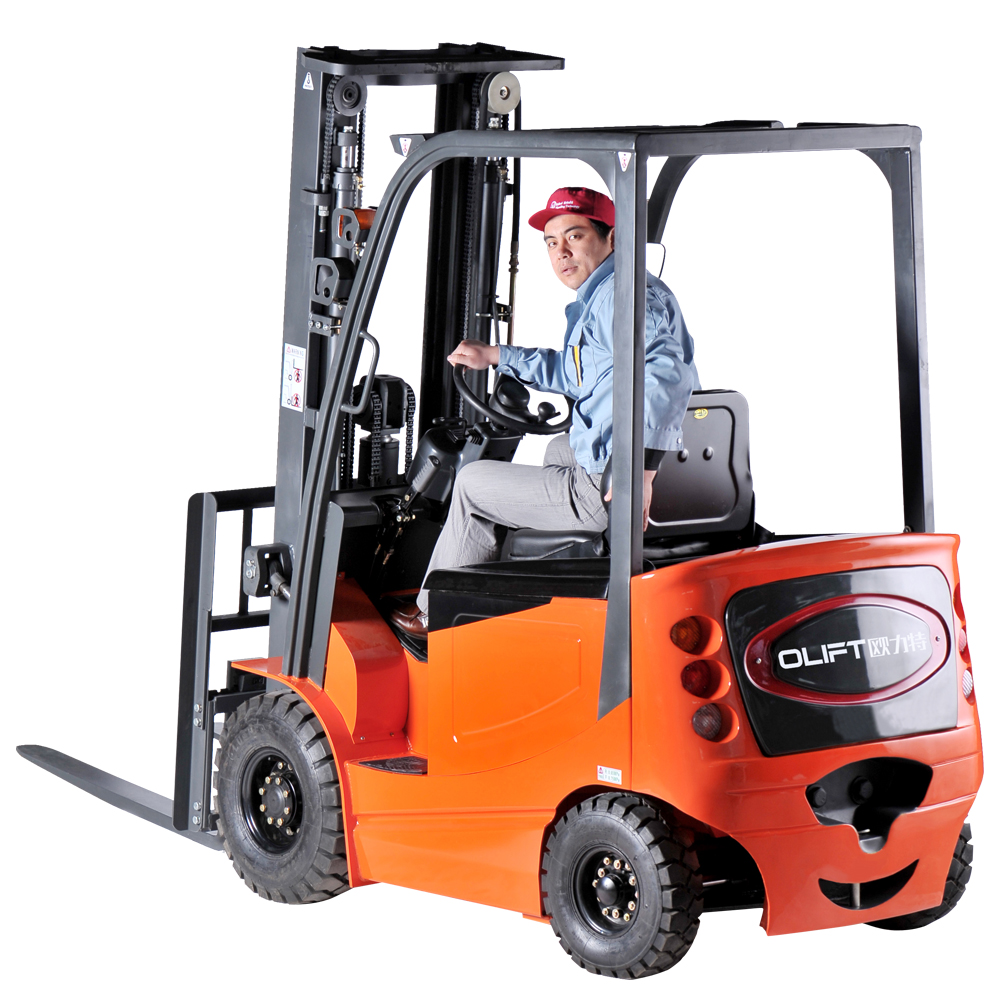

Four Wheel Electric Forklift Truck FB Series

High stability and safety

Cab design by SIP point , conform to EN- ISO 5353, ensures compartment with great comfort and fatigue- free operating.
Multifunction LCD digital display with digital service hour metre, battery discharge indicator, travel records, error code and warning displays. Provide fast and accurate monitoring truck status.
Mast cylinder lowering with buffering system: shock absorber steering axle with low noise. All of seal kits imported from Japan ( NOK), transmission and working system have low noise.
With regenerative brake in reversing mode and regular brake pedal use, truck can be braked after foot leaving the pedal. reduce operator efforts and improve the brake life.
The optional of third safety pedal to reduce the driving speed while stacking and steering application.

Ergonomics

Wide view mast, clear visibility.
Low height access step with wide steel non slip plate for easy entry and exit.
Cowl-mounted hydraulic levers design offers big operation space.
Adjustable tilt steering column offers the most comfortable operator position.
Seat with safety belt and arm rest (The optional of Grammar or suspension type).
High-friction brake shoes are fee of asbestos.
With reverse mirror, front work light and back work light group.

Easy maintenance

Floor board are easily removed for quick service assess.
Insulated battery cover gas-filled cylinders and easy to maintain.

MODELFB15FB16FB20FB25
Powerelectricelectricelectricelectric
Operation typeseatseatseatseat
Capacity/rated loadQ(kg)1500160020002500
Load centre distancec(mm)500500500500
Lift heighth3(mm)3000~60003000~60003000~60003000~7000
Load distance, centre of drive axle to forkx(mm)395395395498
WheelbaseY(mm)1300138013801600
Service weight (with battery)kg3080305032804050
Axle loading, laden front/rearkg4030/5504092/5584647/6335764/786
Axle loading, unladen front/rearkg1232/18481220/18301312/19681620/2430
Tyres typepneumatic/solidpneumatic/solidpneumatic/solidpneumatic/solid
Tyre size, front mm590×179/577×162590×179/577×162590×179/577×162676×190/657×172
Tyre size rearmm470×137/461×127470×137/461×127470×137/461×127540×160/527×150
Wheels, number front rear(x=driven wheels)2×22×2 / 4X22×2 / 4X22×2 / 4X2
Tread, frontb10(mm)890890890970
Tread, rearb11(mm)920920920970
Tilt of mast/fork carriage forward/backwardGrad6°~12°6°~12°6°~12°6°~12°
Height, mast loweredh1(mm)2015-26102015-26102015-26102040-3117
Free lifth2(mm)0-180000
Height, mast extendedh4(mm)4067~70674067~70674067~70674067~8067
Height of overhead guard(cabin)h6(mm)2105206520652190
Seat height/stand heighth7(mm)1043104310431153
Overall lengthl1(mm)3025320532053450
Length to face of forksl2(mm)2085213521352380
Overall widthb1(mm)1100110011001150
Fork dimensionss/e/l(mm)35/100/92035/100/107040/120/107040/120/1070
Fork carriage DIN 15173,class/type A,B2A2A2A2A
Fork-carriage widthb3(mm)1088108810881160
Ground clearance,laden,below mastm1(mm)105105105115
Ground clearance,centre of wheelbasem2(mm)115115115135
Aisle width for pallets 1000×1200 crosswaysAst(mm)3305350035003750
Aisle width for pallets 800×1200 lengthwaysAst(mm)3125330033003550
Turning radiusWa(mm)1760190019002150
Internal turning radiusb13(mm)425435435505
Travel speed, laden/unladenKm/h0~100~150~13.50~13.5
Lift speed, laden/unladenmm/s205300270260
Lowering speed, laden/unladenmm/s<600<600<600<600
Max. drawbar pull, laden/unladenN8990109901288013550
Max.gradeability, laden/unladen%15/2015/2015/2015/20
Acceleration time, laden/unladens0~30~30~30~3
Battery voltage,nominal capacity K5V/Ah48/40048/45048/45048/630
Battery weightKg650-8208208201012
Battery dimensions l/w/hmm980x532x456980x660x456980x660x4561060x816x510
Type of drive controlDC/ACDC/ACDC/ACDC/AC
Operating pressure for attachmentsMpa15171716.5
Sound level at the driver’s ear acc.to DIN 12053dB(A)<60<63<63<65
