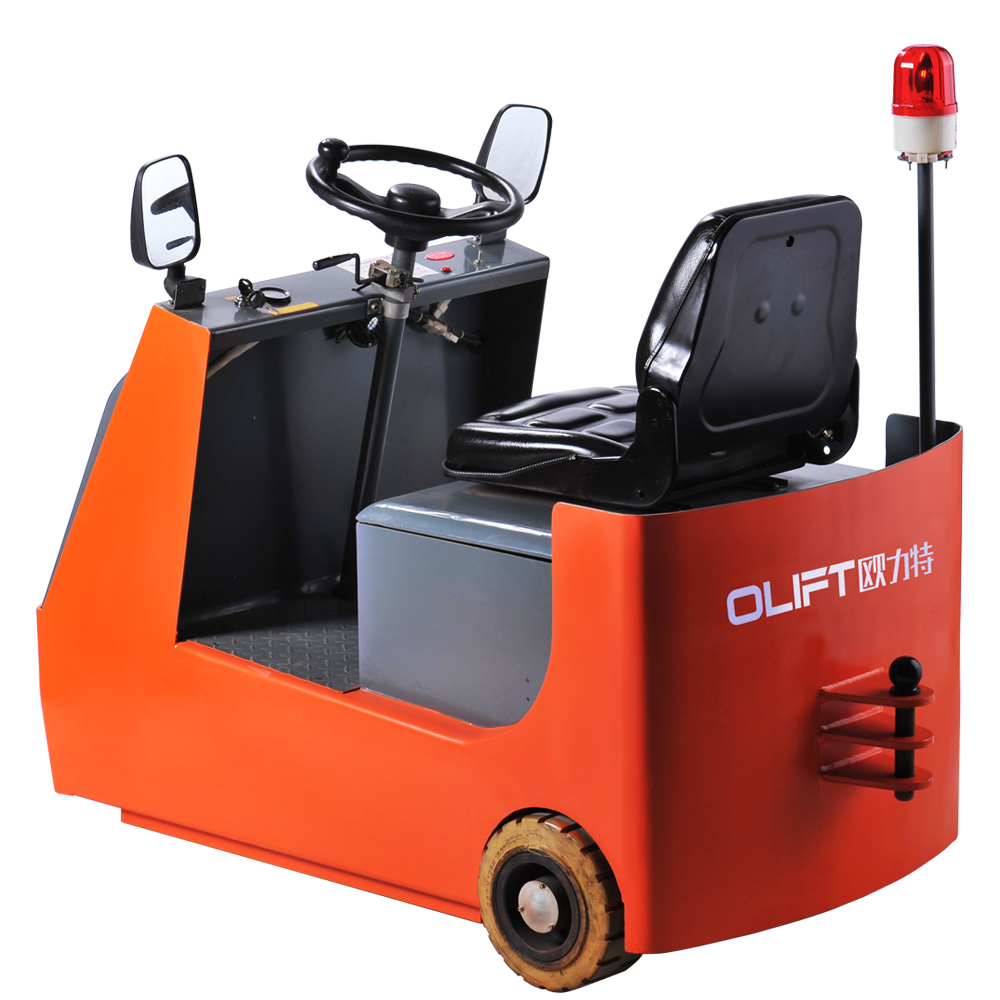

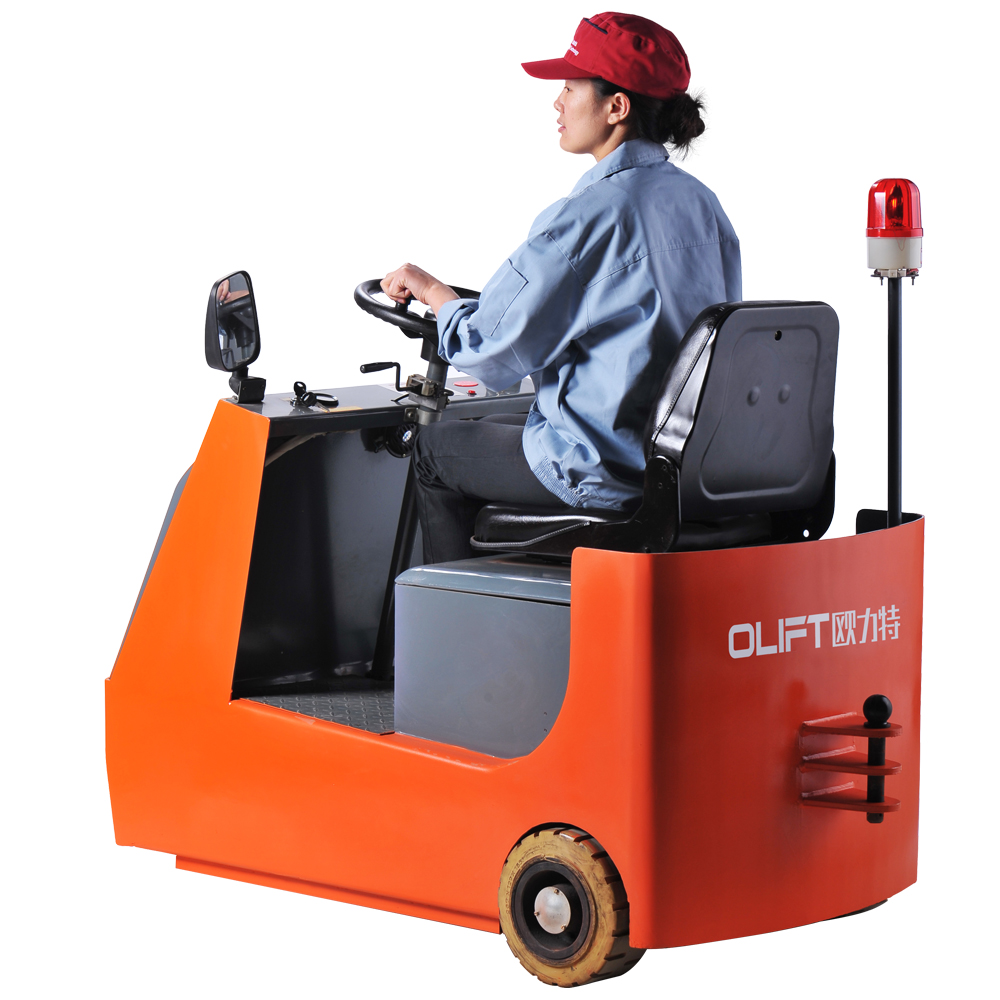

Electric Tow Tractor-TQ series
- Steering wheel style operation with seat.
- The tow tractor adopts Curtis electric control system, which can realize stepless speed regulation.
- State of the art design, good looking.
- High capacity battery with intelligent charger for a longer service life.
- Solid rubber tyre with effective shock absorption function.
- Light weight, compacted structure.
- Low electricity consumption, smooth running,easy access to any good.
- Adopt imported MOS tube programmable stepless speed regulating system.
- The tow tractor is available in several colors, such as red and orange.
| Model No. | TQ50 | TQ30 | TQ20 | |
| Driving Model | Electric | Electric | Electric | |
| Controlling Type | Stepless Speed Adjustment | |||
| Traction Capacity | kg | 5000 | 3000 | 2000 |
| Turn Radius | mm | 1495 | 1380 | 1230 |
| Max. Travelling Speed | km/h | 12 | 7.6 | 6.5 |
| Wheelbase | mm | 1254 | 1125 | 1040 |
| Ground Clearance | mm | 140 | 105 | 105 |
| Hand Brake (Parking) | Mechanical | Mechanical | Mechanical | |
| Foot Brake (Pedal) | Hydraulic | Hydraulic | Hydraulic | |
| Tire Type | Solid rubber tire | |||
| Tyre specification wheels(F/R) | Φ 250×80 | Φ 250×80 | Φ 250×80 | |
| Battery | v/Ah | 48/280 | 24/300 | 24/250 |
| Overall Length | mm | 1995 | 1725 | 1590 |
| Overall Width | mm | 950 | 800 | 800 |
| Overall Height | mm | 1280 | 1560 | 1560 |
| Net Weight | kg | 1140 | 1070 | 850 |
