Electric Vacuum Lifter for Heavy Panels and Slabs

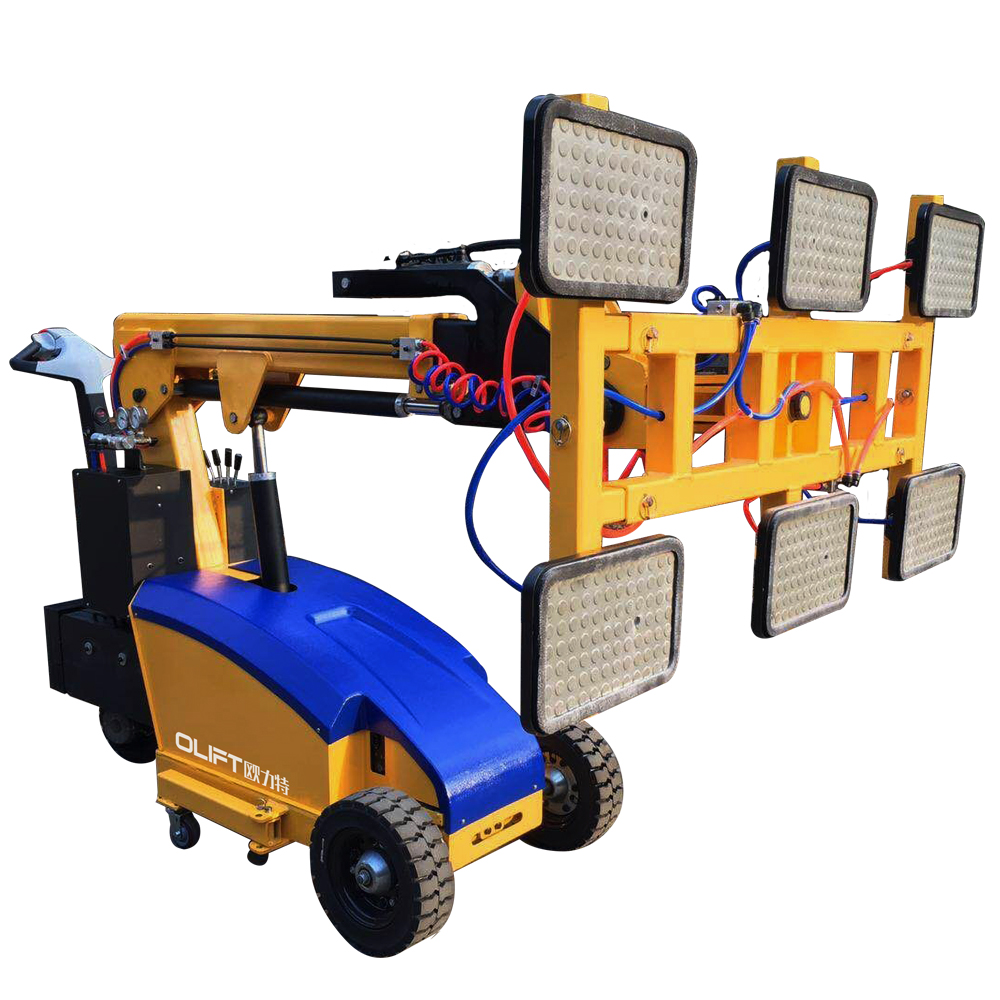

The GL600S is an electric vacuum lifter with sponge suction cups for handling and positioning heavy plates and panels. The current product description lists applications including marble, floor slabs, ceramic tiles, steel boards and wooden boards. It is designed for handling tasks inside or outside buildings, subject to the material surface, load and site conditions.
Handling Movement and Configuration
- Listed lifting capacity: 600 kg with the load retracted; 300 kg with the load extended
- Maximum lifting height: 3,700 mm
- Forward extension: 610 mm
- Positioning movement: electric tilt from vertical to horizontal through 180° and manual rotation through 360°
- Suction-cup configuration: six 300 mm sponge suction cups
Plan the Right GL600S Configuration
For a suitable recommendation, please provide the material surface and condition, load weight, dimensions, required lift height, working position, access limits, quantity and destination country. Our team will help confirm whether the listed configuration is appropriate for your application.
GL600S FAQ
What materials can the GL600S be considered for?
The current product description lists marble, floor slabs, ceramic tiles, steel boards and wooden boards. Suitability depends on the material surface, weight, dimensions and the job conditions, so please share those details before selection.
How does the rated capacity change with forward extension?
The listed capacity is 600 kg with the load retracted and 300 kg with the load extended. Always confirm the required working position and load details with the supplied operating information before use.
| Model: | GL600S |
| Capacity: | 600kg(retracted)&300kg(extended) |
| Lifting height: | 3700mm |
| Height Forward Extension: | 610mm |
| Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: | 180deg |
| Manual rotating: | 360deg |
| Suction cups standard qty: | 6 pieces |
| Suction cups size: | φ300mm*6 pieces |
| Battery: | 2*12V/100Ah |
| Charger: | 24V/15A |
| Drive motor: | 24V/900W |
| Lift motor: | 24V/2000W |
| Drive speed(with or without load): | 3.5km/4.5km/h |
| Lift speed(with or without load): | 13mm/18mm/s |
| Down speed(with load): | 19mm/s |
| Down speed(without load): | adjustable based on customer’s requirements. |
| Gradeability(without load): | 10% |
| Overall Length: | 2420mm |
| Overall Width: | 850mm |
| Overall Height: | 1620mm |
| Net Weight: | 1200kg |
| Packing size: | 2700*950*2000mm |
| Gross Weight: | 1450kg |
