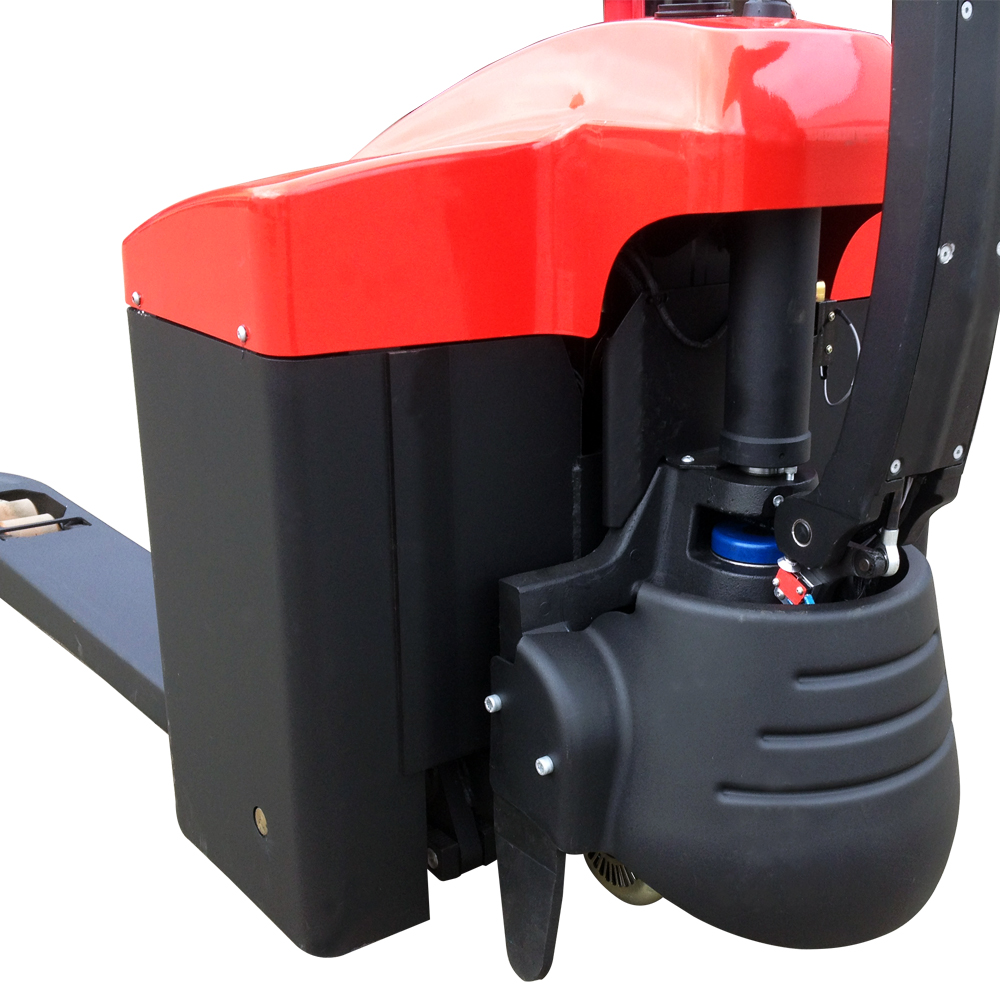

Mini Walkie Electric Pallet-TP15

Mini Walkie Electric Pallet TP15

Advantages:

  1. Permanent magnet drive motor,compact structure,easy maintenance.
  2. Stepless speed control system, easy to operate
  3. Battery open design, easy to replacement.
  4. Built-in charger is standard
  5. Sealed batteries free of maintenance , safe operation and no pollution
  6. Small body, suitable for narrow space.
  7. Fork fit for double-deck pallet
  8. Automatic lifting limit, safety, energy saving.
  9. Emergency reversing device and emergency brake switch
  10. Low noise ,low energy consumption, every day only 2KWh.

ModelTP15
Load capacitykg1500
Load centermm600
Wheel basemm1301
Operating typeWalkie
Wheel quantity Driving wheel/Balance wheel /Bearing wheel1/0/4
Driving wheel sizemm¢252*67
Balance wheel sizemm¢84×70(Double wheels)
Bearing wheel sizemm
Min.fork lowered heightmm85
Max.fork lifting heightmm205
Max.lifting heightmm120
Outside width between forksmm550/600/650/685
Inside width between forks230/280/330/365
Fork lengthmm1150/1200
Fork widthmm160
Fork thicknessmm55
Overall lengthmm1707
Overall widthmm697
Overall height(With handle)mm1181
Overall height(Without handle)mm714
Min.Turning radiusmm1547
Min.Aisle width for pallets 800×1200mm1920
Min.Aisle width for pallets 1000×1200mm1953
Travel speed,laden/unladenkm/h3/3.5
Lift speed,laden/unladenmm/s56/60
Lowering speed,laden/unladenmm/s57/59
Gradeability,laden/unladen%43958
Drive motor kwDC 0.65
Lift motor kwDC 0.8
Battery voltage / capacityv/ah24/70
BrakeElectromagnetic / Regenerative
Battery weightkg48
Service weight with batterykg275
