Aluminium Aerial Lift Platform

Aluminium Aerial Lift Platform PL Series

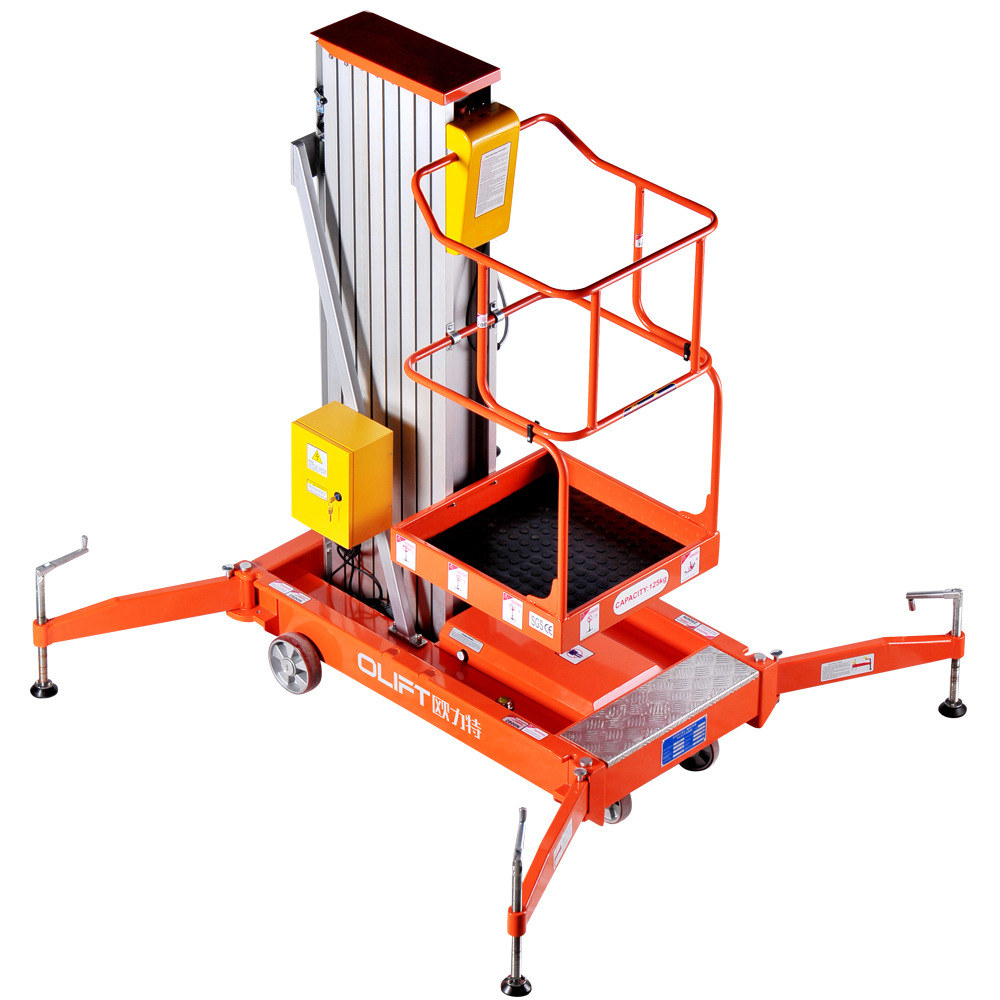

Push Around Vertical Mast Lift- GKMA Single Mast
GKMA Push Around Vertical Mast Lift lift with aluminum mast structure. Its mast is made by high-strength, aircraft-quality grade material aluminum. Thus our GKEA lifts have smart body, light self-weight and is flexible for operation. It can use AC power or battery power depdnding on your request.

Overview
Overload limit
Leveling leg and indicator for balance
Emergency lowering and stop button device for safety

Model NumberPL06PL08PL10
Max. Platform Heighmm6000800010000
Working Heightmm7700970011700
Ground Clearancemm808080
Lift Rated Capacitykg150125125
Platform Sizemm650×600650×600650×600
Outspread Sizemm1930×17701930×17701930×1770
Electrical SourceV220220220
V242424
Batteryv/Ah2×12/602×12/602×12/60
Chargerv/A441284412844128
Lifting Motorv/kw220/0.75220/0.75220/0.75
v/kw24/2.024/2.024/2.0
Overall Lengthmm133013301330
Overall Widthmm800800800
Overall Heightmm195020502150
Overall Net Weightkg300350400
kg330380430
