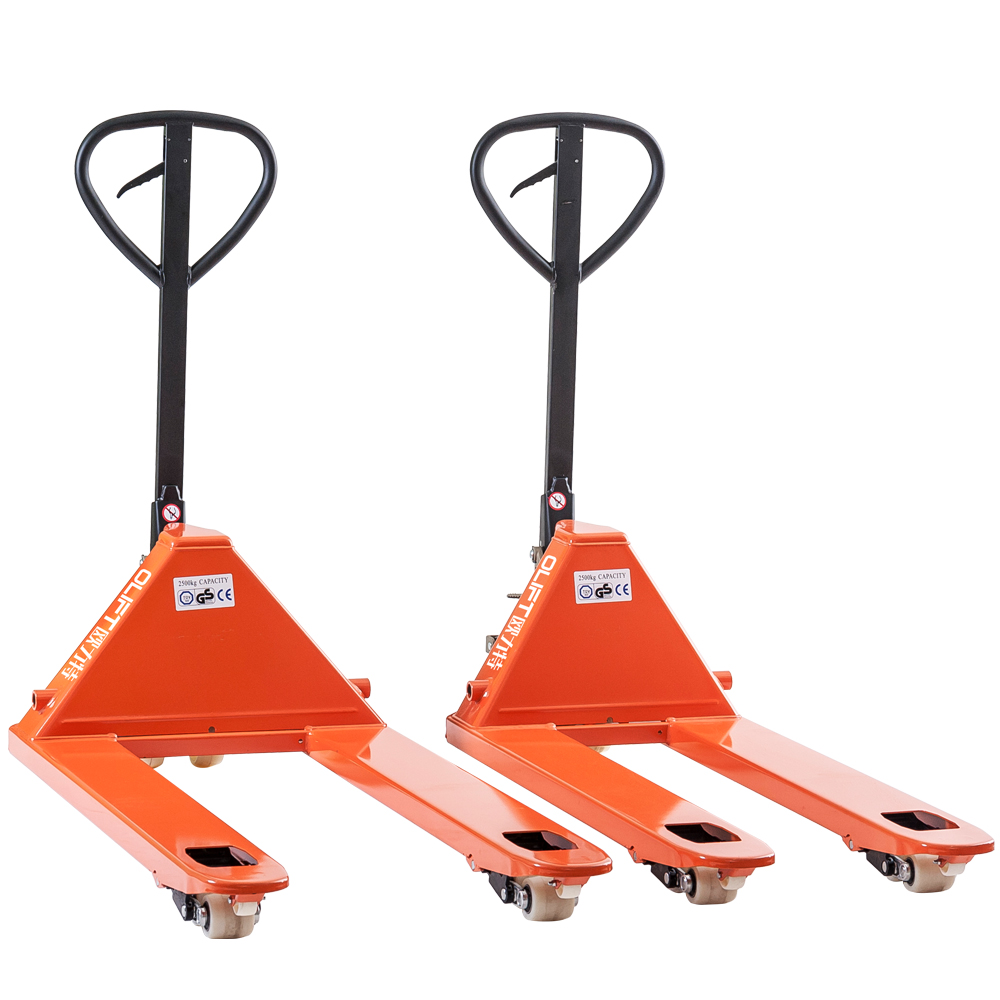

Hand Pallet Jack A101 A102
Optimized round fork tips ensures easy operation;
54mm fork thickness ensures high capacity;
Curve design on the fork tips help
Pallets entry in/out.
INNOVATION D ESIGN
> Reduce maintenance cost > /improve working efficiency > Increase truck service life
High reliability, suitable for a variety of environments. It can be used for
3~ 5years under normal maintenance.
■The first design of forging & casting integral pump, which prevents any
loosening and leakage.
■High-strength alloy steel carefully crafted, increased loading capacity.
■Set the active safety valve to prevent overloading of operation.
54mm fork thickness ensures high capacity.
| Model | A101 | A102 | |
| Load capacity | Q(kg) | 2500 | 3000 |
| Steering wheel | mm | 180*50 | 180*50 |
| Fork wheel single | mm | 80*70/74*70 | 80*70/74*70 |
| Fork wheel tandem | mm | 80*93/74*93 | 80*93/74*93 |
| Lifting height | h3(mm) | 200/190 | 200/190 |
| Lowered height | h13(mm) | 85/75 | 85/75 |
| Overall length | l1(mm) | 1534/1604 | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150(1220) | 54/160/1150(1220) |
| Distance between fork- arms | b5(mm) | 520/550/685 | 520/550/685 |
| Turning radius | wa(mm) | 1249/1319 | 1249/1319 |
| Ground clearance, centre of wheelbase | m2 (mm) | 32 | 32 |
| Height of tiller in drive position max | h14 (mm) | 1224 | 1224 |
