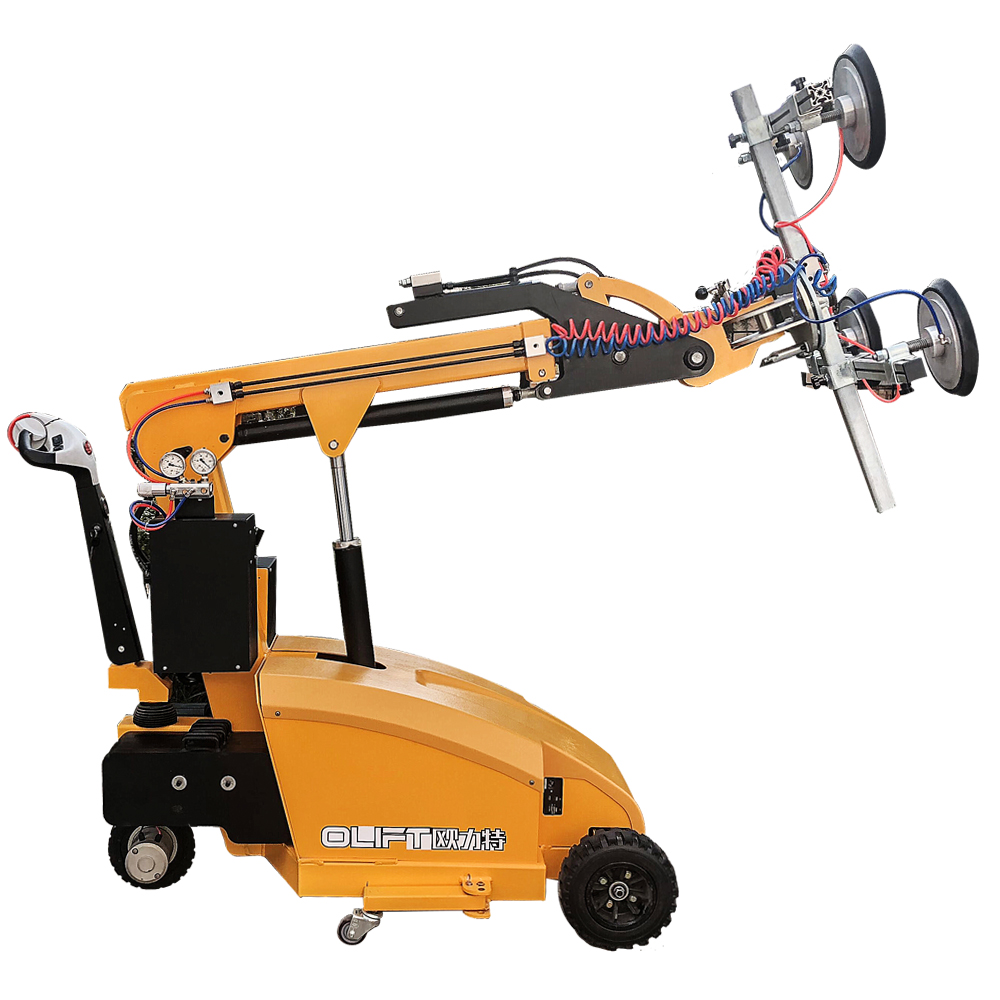

Glass Lifter-GL350

Electric Vacuum lifter-GL350 for handling and fitting glass sheets etc inside/outside buildings.

The vacuum lifter is designed with automatic pressure control and dual safety circuits to avoid system failure.

Ideal for loading & unloading transporting, rotating and installation, and with small width to access into doors.

Easy for operation, with the following functions:

  1. Self-propelled drive.
  2. Electric hydraulic lift and extensions to Lift Height 3500 mm Forward Extension 610 mm.
  3. Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
  4. Manual rotating 360 deg.

Model:GL350
Capacity: 350kg
Lifting height:3500mm
Height Forward Extension:610mm
Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: 180deg
Manual rotating: 360deg
Suction cups standard qty: 4 pieces
Suction cups size: φ250/300mm*4 pieces
Battery: 2x12V/70Ah
Charger: 24V/10A
Drive motor: 24V/600W
Lift motor: 24V/1300W
Drive speed(with or without load): 3km/4km/h
Lift speed(with or without load): 13mm/18mm/s
Down speed(with load): 19mm/s
Down speed(without load): adjustable based on customer’s requirements.
Gradeability(without load): 0.05
Overall Length: 1990mm
Overall Width: 750mm
Overall Height: 1500mm
Net Weight: 850kg
Packing size: 2500*850*1620mm
Gross Weight: 1000kg
